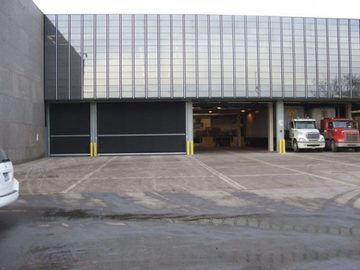

TNR Model HDC
Ideal for fast-paced operations in manufacturing, mining and transit, TNR's High-Performance Overhead Door Model HDC is a springless, high cycle rubber door. Opening at speeds of up to 48” per second, the Model HDC will work to boost your facility's efficiency and productivity.
Product Specs
Construction
- 1/4" black SBR rubber with polyster core weave
- Thru-beam photoelectric sensor
- Self-supporting steel mounting angle
- Knock-away double angle steel bottom bar with rubber loop and reversing edge
Features
- High cycle springless operation with Variable Frequency Drive
- Sleek profile and lack of hinges, cables, pulley or tension springs help facilitate easy installation
- Multi-function capacity PLC with inverter drive for soft start soft stop operation
- Ability to withstand high impact and downtime is minimal
- Door speed of up to 48 inches per second to open and 30 inches per second to close
Options
- Hoods and travelling windbar
- Colours and window options
- MSHA-rated self-extinguishing curtain
Brochures
Highlights
| Material | Aluminum |
|
Insulation Value ? R0-R6 = 1 star | ★ |
| Uses | High Performance |
