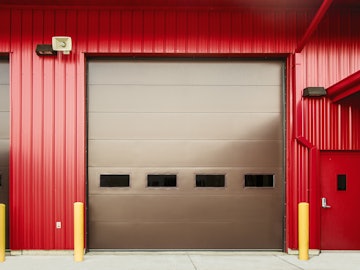

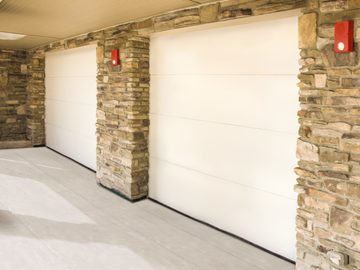

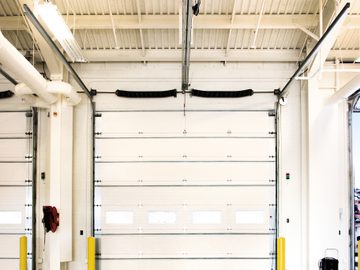

Wayne Dalton Thermospan® Model 200-20
Tailor-made for the energy conscious, Wayne Dalton's Thermospan® Model 200-20 Overhead Sectional Doors features continuous foamed-in-place insulation and a thermal break between the inner and outer skins for ultimate thermal efficiency. When it comes to insulation value and rigidness, this door outperforms all other conventional steel doors on the market.
Product Specs
Construction
- Continuous foamed-in-place polyurethane insulation
- Sectional steel doors with patented roll-formed integral struts on each section
- 20-gauge exterior steel
- 2” section thickness
Features
- R-value of 17.5
- Thermal breaks separate the inner and outer skins preventing heat or cold air from entering
- Inner and outer skins are hot-dipped galvanized steel and provide corrosion-resistance
- Polyurethane core provides high thermal efficiency and aids in smooth operation
- Integral struts per section increase strength and rigidity
- Joint seal prevents air infiltration and helps save energy
- 10,000 cycle standard spring
Options
- Pass door
- Chain hoist operation
- Motor operation
- Sensing edges
- Photo eyes
- High cycle spring (25k, 50k, 100k)
- 3” track option
- Solid shafts
- Perimeter weather seal
- Special track designs
- Mullions
Brochure
Highlights
| Material | Galvanized Steel |
|
Insulation Value ? R0-R6 = 1 star | ★ |
| Uses | Sectional Doors |
